Electronic unit

EAN823

Microprocessor-controlled electronic unit with integrated frequency converter for continuous control of electrical actuators.

Overview

During continuous positioning the electronic unit varies the motor torque steplessly until the actuator force and the restoring process forces are balanced. High response sensitivity and positioning accuracy ensure an excellent control quality and a long actuator life expectancy.

Data

General specifications:

Conventional signal interface (0/4 to 20 mA / 24 V)

Digital communication via HART and PROFIBUS DP

Additional functions

– Process controller

– Maintenance computer

– Programmable characteristics

Field installation

Housing with high protection class IP 66

Torque, speed variation and continuous positioning

Electrical linear actuator

RSD100 (Contrac)

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 100 kN (22500 lbf). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Electrical actuator for continuous positioning or step control

Stallproof without the need of position or torque dependent switch-off

Three-phase asynchronous motor

Sturdy gear unit with highly efficient design

Internal rotary – linear conversion

Hand wheel for emergency operation

Integrated sensors for position and temperature

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

– High power range EBN861

Mounting rack installation

– Medium power range EBS852

– High power range EBS862

Data

Rated speed

RSD100-1.5

–  0.1 to 1.5 mm/s

RSD100-10.0

–  0.1 to 10.0 mm/s

Stroke range

–  min 0 to 15 mm, max. 0 to 300 mm

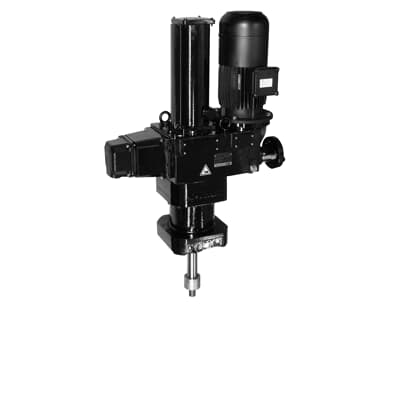

Electrical linear actuator

RSD50 (Contrac)

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 50 kN (11240 lbf). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Electrical actuator for continuous positioning or step control

Stallproof without the need of position or torque dependent switch-off

Three-phase asynchronous motor

Sturdy gear unit with highly efficient design

Internal rotary – linear conversion

Hand wheel for emergency operation

Integrated sensors for position and temperature

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

– High power range EBN861

Mounting rack installation

– Medium power range EBS852

– High power range EBS862

Electrical linear actuator

RSD20 (Contrac)

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 20 kN (4500 lbf). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Electrical actuator for continuous positioning or step control

Stallproof without the need of position or torque dependent switch-off

Three-phase asynchronous motor

Sturdy gear unit with highly efficient design

Internal rotary – linear conversion

Hand wheel for emergency operation

Integrated sensors for position and temperature

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

Mounting rack installation

– Medium power range EBS852

Electrical linear actuator

RSD10 (Contrac)

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 10 kN (2250 lbf). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Electrical actuator for continuous positioning or step control

Stallproof without the need of position or torque dependent switch-off

Three-phase asynchronous motor

Sturdy gear unit with highly efficient design

Internal rotary – linear conversion

Hand wheel for emergency operation

Integrated sensors for position and temperature

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

Mounting rack installation

– Medium power range EBS852

Linear actuator LME620-AI/-AN (Contrac)

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 4 kN (900 lbf). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

With integrated electronic unit or for use with separate electronic unit

Electrical actuator for continuous positioning or step control

Stallproof without the need of position or torque dependent switch-off

Three-phase asynchronous motor

Sturdy gear unit with highly efficient design

Internal rotary – linear conversion

Hand wheel for emergency operation

Integrated sensors for position and temperature

Find out more about the electronic units:

Field installation EAN823

Mounting rack installation EAS822

Electrical rotary actuator

RHD16000 (Contrac)

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 16000 Nm (12000 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Process optimization thanks to maximum control precision

Maintenance-free up to 10 years

Electrical actuator for continuous positioning, three-point position control, or bus control

Stallproof without the need for position- or torque-dependent shut-off

Adjustable mechanical limit stops for defined operating range

Handwheel for emergency operation

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– High power range EBN861

Mounting rack installation

– High power range EBS862

Electrical rotary actuator

RHD8000 (Contrac)

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 8000 Nm (6000 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Process optimization thanks to maximum control precision

Maintenance-free up to 10 years

Electrical actuator for continuous positioning, three-point position control, or bus control

Stallproof without the need for position- or torque-dependent shut-off

Adjustable mechanical limit stops for defined operating range

Handwheel for emergency operation

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

– High power range EBN861

Mounting rack installation

– Medium power range EBS852

– High power range EBS862

Data

Rated speed

RHD8000-15.0

–  15 to 900 s/90°

RHD8000-80.0

–  80 to 900 s/90°

Operating angle

–  min 35° / max. 300°

Electrical ​rotary actuator

RHD4000 (Contrac)

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 4000 Nm (3000 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Process optimization thanks to maximum control precision

Maintenance-free up to 10 years

Electrical actuator for continuous positioning, three-point position control, or bus control

Stallproof without the need for position- or torque-dependent shut-off

Adjustable mechanical limit stops for defined operating range

Handwheel for emergency operation

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

– High power range EBN861

Mounting rack installation

– Medium power range EBS852

– High power range EBS862

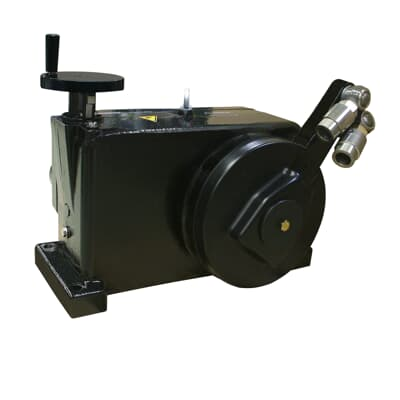

Electrical rotary actuator

RHD1250 / RHD2500 (Contrac)

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 1250 / 2500 Nm (1000 / 1900 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

Overview

General specifications:

Process optimization thanks to maximum control precision

Maintenance-free up to 10 years

Electrical actuator for continuous positioning, three-point position control, or bus control

Stallproof without the need for position- or torque-dependent shut-off

Adjustable mechanical limit stops for defined operating range

Handwheel for emergency operation

Signal and power input only via separate, microprocessor-controlled electronic unit

Find out more about the electronic units:

Field installation

– Medium power range EBN853

– High power range EBN861

Mounting rack installation

– Medium power range EBS852

– High power range EBS862
