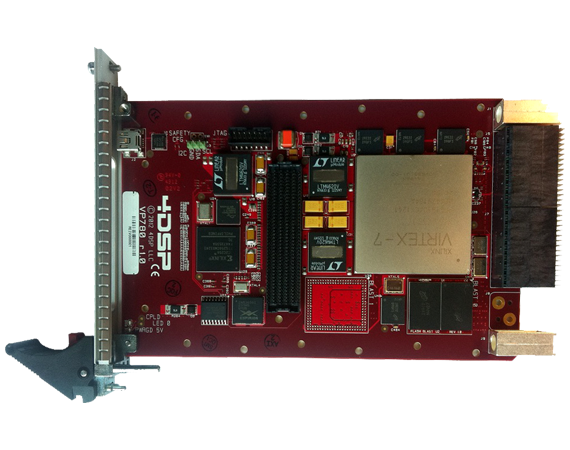

VP780 FPGA Card

3U VPX with Virtex-7 FPGA

Overview

The VP780 is a high-performance Virtex-7 VPX card with advanced digital signal processing capabilities. The design has been optimized for the implementation of complex FPGA algorithms with high throughput requirements.

Optionally conduction-cooled, the VP780 is in the 3U VPX form factor, offering up to 10 GBytes of DDR3 SDRAM and additional memory options on 2 BLAST sites. A VITA 57 compliant FMC site makes it possible to easily integrate I/O cards with A/D, D/A, RF capabilities and more.

Abaco offers many off-the-shelf Intellectual Property (IP) cores for applications that require the highest level of performance.

The VP780 is an excellent choice for high performance applications that require the use of accelerated frequency-domain algorithms such as with FFTs.

VP780 FPGA Card

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

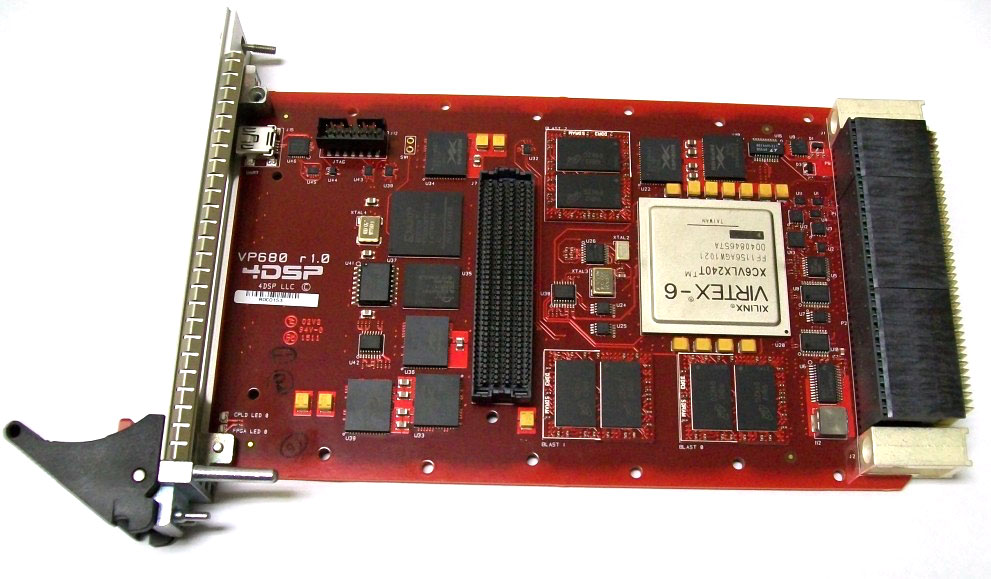

VP680 FPGA Card

3U VPX with Virtex-6

Overview

The VP680 is a high performance VITA 46 (VPX) standard compliant card with advanced digital signal processing capabilities. The design has been targeted for customer-programmable implementations of complex FPGA algorithms for digital signal processing (DSP) applications.

Offered in the 3U VPX form factor, the VP680 provides various direct on-board interface options that are closely coupled to large – fast on-board memory resources of the Xilinx Virtex™-6 FPGA.

The VP680 is an excellent choice for high performance applications that require the use of accelerated frequency-domain algorithms such as with FFTs.

Abaco Systems offers many off-the-shelf Intellectual Property (IP) cores for applications that require the highest level of performance.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

PC821 PCIe FPGA Card

Featuring an Ultrascale FPGA and two FMC sites

Overview

The PC821 is a high-performance, PCI Express card with advanced DSP capabilities and multiple I/O options.

It supports one VITA 57.4-compliant FMC+ and one VITA 57.1 compliant HPC FMC site. Both FMC sites are closely coupled to the Virtex or Kintex UltraScale FPGA and a DDR4-2133 SDRAM SO-DIMM.

The PC821’s PCIe Gen3 interface can support up to eight lanes.

The card features a single-lane SFP+ module as a serial peripheral interface.

An 8-lane 14Gbps FireFly connector is also available as an optional serial peripheral interface. The FireFly connection can be made accessible either from inside the chassis or, alternatively, from the bezel if the SPF + cage is removed.

The PC821 is an excellent choice for high-performance applications that require large-band signal digitization or generation through the use of accelerated frequency domain algorithms.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

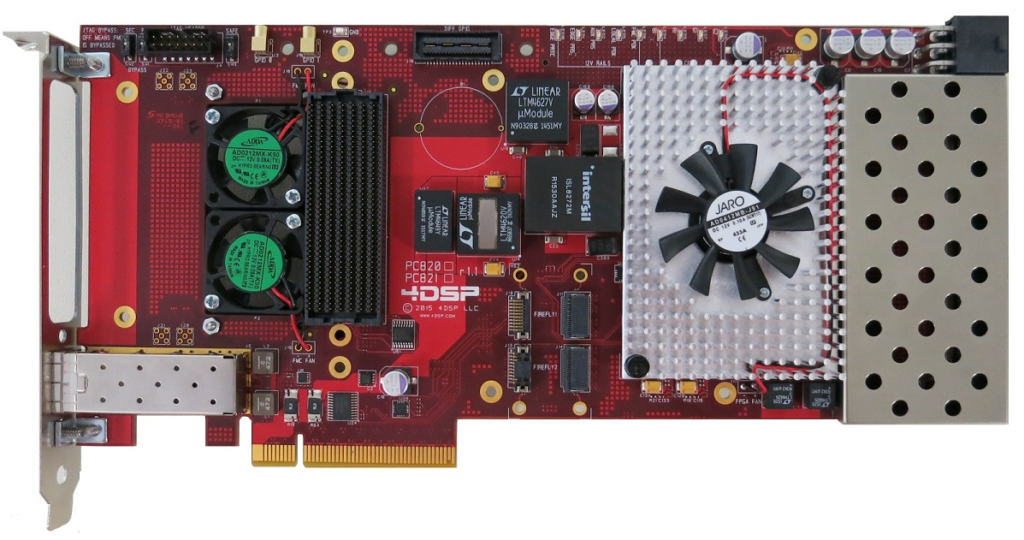

PC820 FPGA Card

PCIe with Kintex or Virtex Ultrascale FPGA

Overview

The PC820 is a high-performance, PCI Express card with advanced DSP capabilities and multiple I/O options. It supports one FMC+ VITA 57.4-compliant HPC FPGA Mezzanine Card (FMC) that is closely coupled to the Virtex or Kintex UltraScale FPGA and a DDR4-2133 SDRAM SO-DIMM. The PC820s PCIe Gen3 interface can support up to eight lanes.

The card features a single lane SFP+ module as a serial peripheral interface. An 8-lane 14 Gbps FireFly connector is also available as an optional serial peripheral interface. The FireFly connection can be made accessible either from inside the chassis or, alternatively, from the bezel if the SPF+ cage is removed.

The PC820 is an excellent choice for high-performance applications that require large-band signal digitization or generation through the use of accelerated frequency domain algorithms.

PC820 FPGA Card

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

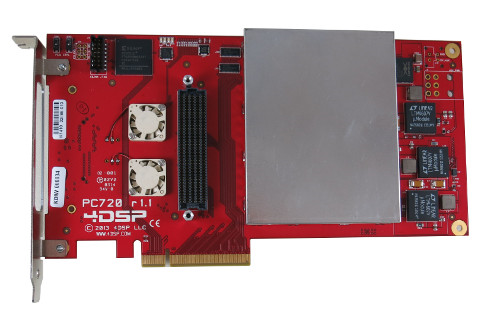

PC720 FPGA Card

PCIe with Kintex-7

Overview

The PC720 is a high-performance, half-size PCI Express card with advanced digital signal processing (DSP) capabilities and multiple I/O options. It offers various direct on-board interface options (2x FMC sites) that are closely coupled to the Kintex-7 and 1GB of DDR3 SDRAM.

With on board fans available to dissipate heat from the FMC site and the Kintex-7. this product remains cool in any enclosure.

It is an excellent choice for high performance applications that require large band signal digitization or generation through the use of accelerated frequency-domain algorithms or video applications that are bandwidth-hungry.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

The PC720 has a minimum order quantity of 5 units.

Overview

FlexVPX  provides system designers with the flexibility and performance required for the most demanding applications. The ability to interconnect 2 and 3-slot 3U VPX compliant backplanes allows for custom system configurations using COTS hardware. Backplanes are equipped with PCI Express bridges that ensure fast and high-throughput for point-to-point communication between different elements in the system. FlexVPX relies on OpenVPX (VITA 65) which enables the interoperability of products from different vendors. With the option to build multi-slot solutions, users have the opportunity to design a range of systems that feature a small footprint, a high level of ruggedization, and unmatched performance. FlexVPX is available in three standard configurations: VPB601. VPB602 and VPB603. Download the user manuals for more detailed information.

Overview

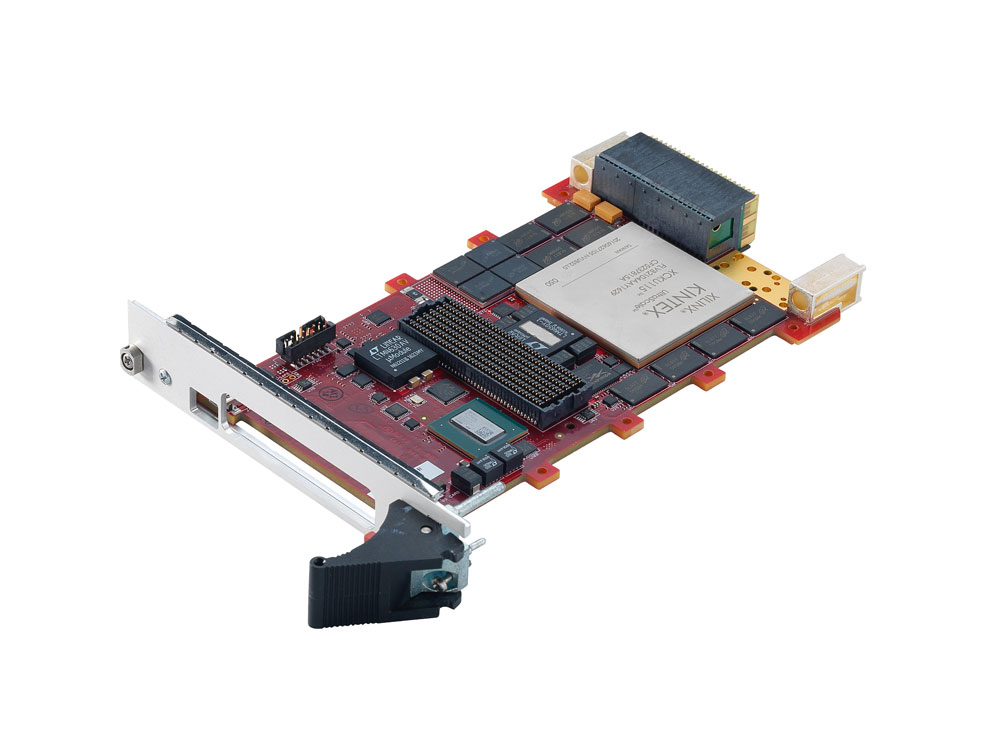

The VP880 / VP881 is a high-performance FPGA processing board featuring Xilinx® Ultrascale™ and Zynq® Ultrascale+™ technology. It is designed for the most demanding, mission critical military/defense applications such as electronic warfare / DRFM, radar/sonar image processing, satellite communications systems, multichannel digital transmission/reception and advanced digital beamforming.

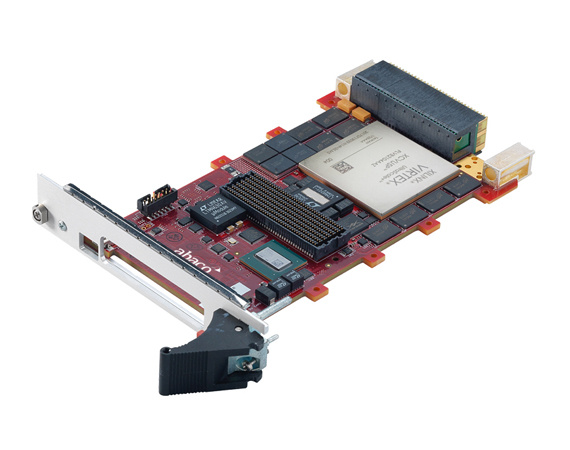

Abaco VP889 FPGA Board

When we promise upgradability, we deliver upgradability

Overview

3U OpenVPX FPGA Card

The VP889 is a high-performance FPGA processing board featuring Xilinx® Virtex Ultrascale+™ and Zynq® Ultrascale+™ technology.

Secure

The Zynq Ultrascale+ system-on-chip (SoC) brings advanced security to the forefront. The VP889 is capable of advanced encrypted bit streams and secure boot capability, enabled by Xilinx tools.

The flexibility you need for the system you want

Including the Zynq MPSoC removes the need for a single board computer in some applications, providing customers an efficient way to maximize system performance while reducing complexity.

Typical applications

• Electronic Warfare

• ISR

• Radar Signal Processing

• Software Defined Radio

Looking for 3U OpenVPX FPGA Card aligned to the SOSA™ standard? Contact us for more information about our VP831

VP889 FPGA Board

Overview

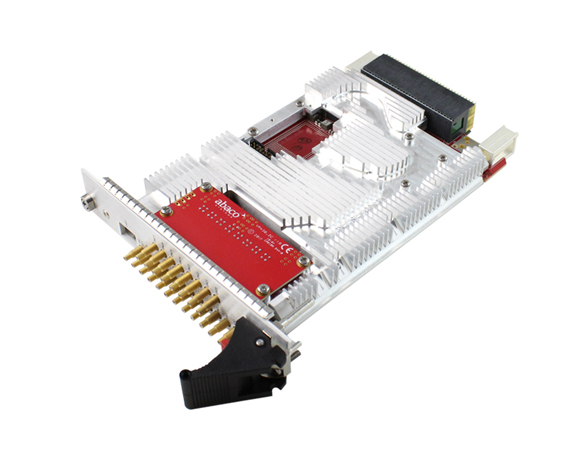

RFSoC on 3U VPX: the VP430 direct RF system features an RFSoC with integrated ADCs, DACs, programmable FPGA logic, and Zynq ARM Cortex processor.

Specifications

Channels

8 Analog input, 8 Analog output

Conformal Coating

Option

Cooling

Air, Conduction

Data Rate

4000 Msps input, 6400 Msps output

Form Factor

VPX 3U

FPGA Family

Zynq Ultrascale+ RFSoC

Memory

8GB DDR4

Operating System (OS) Support

Linux, VxWorks, Windows

Resolution

12-bit in, 14-bit out

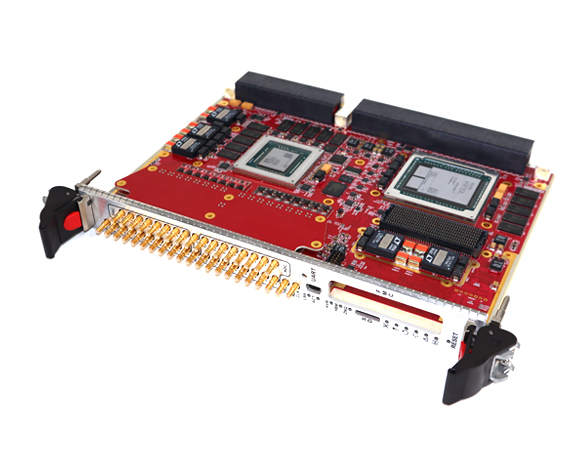

Abaco VP460 6U VPX Direct RF Processing System with Xilinx Zynq Ultrascale+ RFSoC

Overview

Next Generation FPGA, Aligned with SOSA Technical Standards

The VP460 is designed to enable customers to begin development of their next generation systems using revolutionary new processor technology. It is in alignment with the SOSA™ Technical Standard to provide the interoperability required by the US Air Force, Army and Navy.

Increased Performance in Less Space

The VP460 is a major step forward in performance and density, enabling the use of fewer boards with increased performance – thus minimizing SWaP – as well as the built-in ability to handle advanced MIMO, beamforming, and many applications such as communications, sensor processing, radar, and electronic warfare.

RFSoC and HBM, All in One

A 6U VPX RF processing system, the VP460 features the transformational Xilinx® Zynq® Ultrascale+™ RF system-on-chip (RFSoC) technology and the latest Xilinx Virtex™ Ultrascale+ High Bandwidth Memory (HBM) FPGA device. The RFSoC ZU29DR device used on the VP460 includes 16 integrated analog-to-digital converters at 2GSPS, 16 digital-to-analog converters at 6.4 GSPS, a user- programmable FPGA fabric, and multi-core Zynq ARM® processing subsystem.

The HBM VU37P device features the speed and capabilities of an UltraScale+ FPGA together with integrated DRAM in the FPGA package, capable of up to 460GB/s data transfer rates on-chip.

VP460
