Communicate securely across your network with fast performance and versatile connectivity.

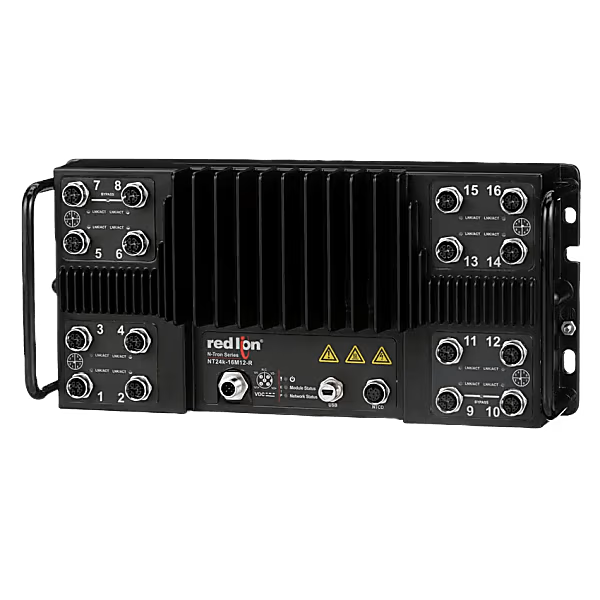

N-Tron® NT24K-16M12-POE-R Managed 16-Port IP67 Gigabit Industrial Ethernet Switch

Item number NT24K-16M12-POE-R

The N-Tron® NT24k 16-Port IP67 Managed Gigabit Industrial Ethernet Switch is one of the easiest to deploy Ethernet switches in the industry. Simplified use, uncompromised performance and multiple configurations to fit your automation and industrial needs. Sixteen copper 10/100/1000BaseTX M12 X-code ports with bypass relay.

Features and benefits

Rugged and durable design

Operates in extreme temperatures from -40° C to 85° C along with high shock and vibration tolerance. Designed to handle the most demanding environments with IP67-rated hardened metal enclosure.

Secure M12 copper ports

Sixteen 10/100/1000BaseTX RJ-45 ports that support PoE+ on each port. M12 8-pin X-coded female connectors. Bypass relay port.

Easy to use 10/100/1000BaseTX ports

Auto-sensing for MDIX, speed and flow control. Supports full/half duplex operation and full wire speed.

Reliable connectivity to industrial data

The N-Tron NT24k managed Ethernet switch connects industrial operations to data reliably and efficiently. It provides an industry-ready way to move data across industrial networks.

Robust security for your network switches

Protect against unauthorized access with built-in security features: IEEE 802.1X port and user authentication (RADIUS), SNMP communication protocols, SSH/SSL/HTTPS, 16.000 MAC addresses and support for event logs and syslogs.

Designed with network redundancy to maximize uptime

High availability protocols (SNTP/RSTP, N-Ring), VLANs, Quality of Service (QoS), port trunking and mirroring, and IGMP auto-configuration maximize uptime and keep mission critical operations running.

Fast Healing Ring network redundancy

Comes with N-Tron’s N-Ring™ ~30ms healing technology. Pre-configured N-Ring ports make it easy to add new NT24k-series switches. Reconfigure by changing the ring from “auto-member” to “manager.”

Design enhancements to simplify VLAN configuration

Ease of use enhancements make VLAN configurations easier than ever. The graphical display shows a logical view of the switch, including the VLAN port and tag configuration.

N-View™ monitoring technology

Monitor multiple N-View™-capable switches from a single window. This Windows-based software reduces downtime by centralizing firmware management, grouping devices and scheduling firmware updates.

Advanced features designed to meet future needs

With advanced management, performance and security features provided right out of the box, you have tools you need now—and as your network needs grow.

Leading certifications for industrial environments

Suitable for hazardous environments with UL Class I, Division 2 listing and CE certifications. IEEE 1613 and NEMA TS1/TS2 compliance. Over 2 million hours MTBF.

Redundant power inputs and surge protection

Redundant power input (22-49 VDC). ESD and surge protection diodes on all copper ports.

Communicate securely across your network with fast performance and versatile connectivity.

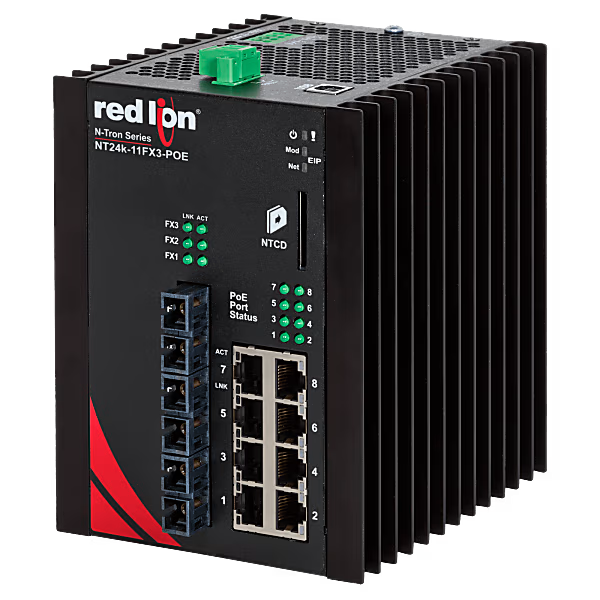

N-Tron® NT24K-11FX3-SC-POE Managed 11-Port Gigabit Industrial Ethernet Switch

Item number NT24K-11FX3-SC-POE

The N-Tron® NT24k 11-Port Managed Gigabit Industrial Ethernet Switch is one of the easiest to deploy Ethernet switches in the industry. Simplified use, uncompromised performance and multiple configurations to fit your automation and industrial needs. Eight copper 10/100/1000BaseTX ports that each support PoE+ and three 100BaseFX 2km, multimode fiber ports with SC connectors.

Features and benefits

Rugged and durable design

Operates in extreme temperatures from -40° C to 80° C along with high shock and vibration tolerance. Designed to handle the most demanding environments.

Flexibility with both copper and fiber ports

Eight gigabit 10/100/1000BaseTX RJ-45 ports that support PoE+ on each port and three 100BaseFX multimode ports with SC connectors

Easy to use 10/100/1000BaseTX ports

Auto-sensing for MDIX, speed and flow control. Supports full/half duplex operation and full wire speed.

Reliable connectivity to industrial data

The N-Tron NT24k managed Ethernet switch connects industrial operations to data reliably and efficiently. It provides an industry-ready way to move data across industrial networks.

Robust security for your network switches

Protect against unauthorized access with built-in security features: IEEE 802.1X port and user authentication (RADIUS), SNMP communication protocols, SSH/SSL/HTTPS, 16.000 MAC addresses and support for event logs and syslogs.

Designed with network redundancy to maximize uptime

High availability protocols (SNTP/RSTP, N-Ring), VLANs, Quality of Service (QoS), port trunking and mirroring, and IGMP auto-configuration maximize uptime and keep mission critical operations running.

Fast Healing Ring network redundancy

Comes with N-Tron’s N-Ring™ ~30ms healing technology. Pre-configured N-Ring ports make it easy to add new NT24k-series switches. Reconfigure by changing the ring from “auto-member” to “manager.”

Design enhancements to simplify VLAN configuration

Ease of use enhancements make VLAN configurations easier than ever. The graphical display shows a logical view of the switch, including the VLAN port and tag configuration.

N-View™ monitoring technology

Monitor multiple N-View™-capable switches from a single window. This Windows-based software reduces downtime by centralizing firmware management, grouping devices and scheduling firmware updates.

Advanced features designed to meet future needs

With advanced management, performance and security features provided right out of the box, you have tools you need now—and as your network needs grow.

Leading certifications for industrial environments

Suitable for hazardous environments with UL Class I, Division 2 listing and CE certifications. IEEE 1613 and NEMA TS1/TS2 compliance. ABS Type approval for shipboard applications. Over 2 million hours MTBF.

Redundant power inputs and surge protection

Redundant power input (22-49 VDC). ESD and surge protection diodes on all copper ports.

Power over Ethernet and data transmission in a compact, unmanaged 5-port switch

N-Tron® 105FXE-SC-15-POE Unmanaged 5-port PoE Switch

Item number 105FXE-SC-15-POE

The N-Tron® Unmanaged 5-port PoE Switch is built to transmit power and data. This plug-and-play unmanaged switch eliminates the need for complex electrical wiring. Four auto-sensing duplex-capable copper PoE ports and one 15 km, singlemode fiber optic port with SC connector in a compact metal case. High performance and durability in demanding industrial environments.

Features and benefits

Meet industrial data communications needs

Full wire speed communication, high throughput and minimum downtime. Upgrade existing solutions with new bandwidth by eliminating network collisions.

Avoid electrical wiring costs with Power over Ethernet (PoE)

Power PoE-capable camera, device or wireless access point without running power lines or an AC power feed. Automatically senses connected PoE devices. 15.4 Watts per port and 13 Watts at the PD.

Four 10/100BaseTX RJ-45 ports

RJ-45 ports auto sense duplex, speed and MDIX. Ethernet switching technology makes RJ-45 ports full/half duplex capable. RJ-45 ports also act as PoE ports.

15km fiber optic uplink port

Fiber optic uplink port enables long distance communication. Industry standard 100BaseFX singlemode port includes SC connectors. Fiber distance rating of 15 km.

Auto-negotiated speed and flow control

Automatically negotiates and configures speed and flow control of the RJ-45 ports.

Metal DIN-rail case

Comes in a 35 mm DIN-rail mountable hardened metal case. Compact design with a small footprint. Dimensions: 9.7 cm X 3.8 cm X 9.0 cm.

Designed for industrial settings

Robust performance in harsh industrial settings. Suitable for hazardous, maritime and rail applications. Over 2 million hours MTBF.

MAC address support

Connect to advanced and complex network architectures with support for up to 2.000 MAC addresses.

Viewable activity status

LED indicator lights display link status, port activity status, PoE status and power fault status.

Leading compliance certifications for industrial environments

IEEE 802.3 and 802.3af compliant. Certified UL Class I, Division 2 rating and CE approval. ABS and EN 50155. EN 50121 and EN 61373 Rail type approvals. Operating temperature of -40 °C to 85 °C.

Redundant DC power inputs and with surge protection

Redundant DC power inputs (46-49 VDC) for increased reliability. Surge protection on power inputs. ESD protection on RJ-45 ports.

Auto-disconnect feature

Disables PoE power when a fault is detected on any PoE port, preserving data transmission and preventing equipment damage.

Communicate securely across your network with fast performance and versatile connectivity.

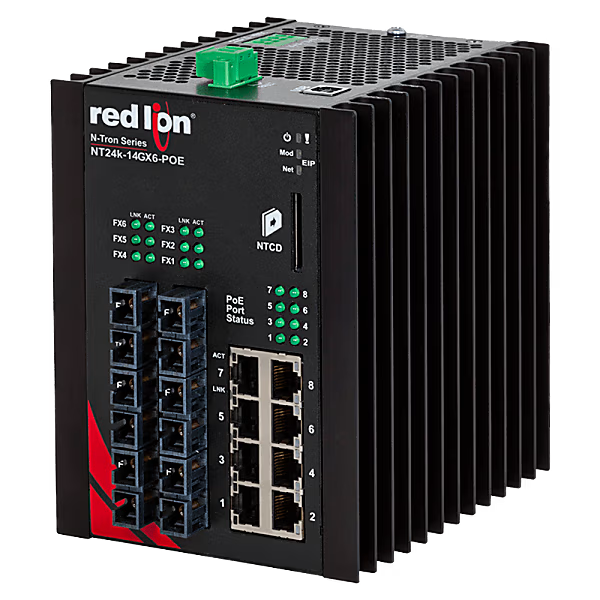

N-Tron® NT24K-14GX6-SC-POE Managed 14-Port Gigabit Industrial Ethernet Switch

Item number NT24K-14GX6-SC-POE

The N-Tron® NT24k 14-Port Managed Gigabit Industrial Ethernet Switch is one of the easiest to deploy Ethernet switches in the industry. Simplified use, uncompromised performance and multiple configurations to fit your automation and industrial needs. Eight copper 10/100/1000BaseTX ports that each support PoE+ and six 1000BaseFX 550m, multimode fiber ports with SC connectors.

Features and benefits

Rugged and durable design

Operates in extreme temperatures from -40° C to 80° C along with high shock and vibration tolerance. Designed to handle the most demanding environments.

Flexibility with both copper and fiber ports

Eight gigabit 10/100/1000BaseTX RJ-45 ports that support PoE+ on each port and six 1000BaseFX multimode ports with SC connectors

Easy to use 10/100/1000BaseTX ports

Auto-sensing for MDIX, speed and flow control. Supports full/half duplex operation and full wire speed.

Reliable connectivity to industrial data

The N-Tron NT24k managed Ethernet switch connects industrial operations to data reliably and efficiently. It provides an industry-ready way to move data across industrial networks.

Robust security for your network switches

Protect against unauthorized access with built-in security features: IEEE 802.1X port and user authentication (RADIUS), SNMP communication protocols, SSH/SSL/HTTPS, 16.000 MAC addresses and support for event logs and syslogs.

Designed with network redundancy to maximize uptime

High availability protocols (SNTP/RSTP, N-Ring), VLANs, Quality of Service (QoS), port trunking and mirroring, and IGMP auto-configuration maximize uptime and keep mission critical operations running.

Fast Healing Ring network redundancy

Comes with N-Tron’s N-Ring™ ~30ms healing technology. Pre-configured N-Ring ports make it easy to add new NT24k-series switches. Reconfigure by changing the ring from “auto-member” to “manager.”

Design enhancements to simplify VLAN configuration

Ease of use enhancements make VLAN configurations easier than ever. The graphical display shows a logical view of the switch, including the VLAN port and tag configuration.

N-View™ monitoring technology

Monitor multiple N-View™-capable switches from a single window. This Windows-based software reduces downtime by centralizing firmware management, grouping devices and scheduling firmware updates.

Advanced features designed to meet future needs

With advanced management, performance and security features provided right out of the box, you have tools you need now—and as your network needs grow.

Leading certifications for industrial environments

Suitable for hazardous environments with UL Class I, Division 2 listing and CE certifications. IEEE 1613 and NEMA TS1/TS2 compliance. ABS Type approval for shipboard applications. Over 2 million hours MTBF.

Redundant power inputs and surge protection

Redundant power input (22-49 VDC). ESD and surge protection diodes on all copper ports.
