PC820 FPGA Card

PCIe with Kintex or Virtex Ultrascale FPGA

Overview

The PC820 is a high-performance, PCI Express card with advanced DSP capabilities and multiple I/O options. It supports one FMC+ VITA 57.4-compliant HPC FPGA Mezzanine Card (FMC) that is closely coupled to the Virtex or Kintex UltraScale FPGA and a DDR4-2133 SDRAM SO-DIMM. The PC820s PCIe Gen3 interface can support up to eight lanes.

The card features a single lane SFP+ module as a serial peripheral interface. An 8-lane 14 Gbps FireFly connector is also available as an optional serial peripheral interface. The FireFly connection can be made accessible either from inside the chassis or, alternatively, from the bezel if the SPF+ cage is removed.

The PC820 is an excellent choice for high-performance applications that require large-band signal digitization or generation through the use of accelerated frequency domain algorithms.

PC820 FPGA Card

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

PC720 FPGA Card

PCIe with Kintex-7

Overview

The PC720 is a high-performance, half-size PCI Express card with advanced digital signal processing (DSP) capabilities and multiple I/O options. It offers various direct on-board interface options (2x FMC sites) that are closely coupled to the Kintex-7 and 1GB of DDR3 SDRAM.

With on board fans available to dissipate heat from the FMC site and the Kintex-7. this product remains cool in any enclosure.

It is an excellent choice for high performance applications that require large band signal digitization or generation through the use of accelerated frequency-domain algorithms or video applications that are bandwidth-hungry.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

The PC720 has a minimum order quantity of 5 units.

Overview

FlexVPX  provides system designers with the flexibility and performance required for the most demanding applications. The ability to interconnect 2 and 3-slot 3U VPX compliant backplanes allows for custom system configurations using COTS hardware. Backplanes are equipped with PCI Express bridges that ensure fast and high-throughput for point-to-point communication between different elements in the system. FlexVPX relies on OpenVPX (VITA 65) which enables the interoperability of products from different vendors. With the option to build multi-slot solutions, users have the opportunity to design a range of systems that feature a small footprint, a high level of ruggedization, and unmatched performance. FlexVPX is available in three standard configurations: VPB601. VPB602 and VPB603. Download the user manuals for more detailed information.

Overview

The VP880 / VP881 is a high-performance FPGA processing board featuring Xilinx® Ultrascale™ and Zynq® Ultrascale+™ technology. It is designed for the most demanding, mission critical military/defense applications such as electronic warfare / DRFM, radar/sonar image processing, satellite communications systems, multichannel digital transmission/reception and advanced digital beamforming.

Abaco VP889 FPGA Board

When we promise upgradability, we deliver upgradability

Overview

3U OpenVPX FPGA Card

The VP889 is a high-performance FPGA processing board featuring Xilinx® Virtex Ultrascale+™ and Zynq® Ultrascale+™ technology.

Secure

The Zynq Ultrascale+ system-on-chip (SoC) brings advanced security to the forefront. The VP889 is capable of advanced encrypted bit streams and secure boot capability, enabled by Xilinx tools.

The flexibility you need for the system you want

Including the Zynq MPSoC removes the need for a single board computer in some applications, providing customers an efficient way to maximize system performance while reducing complexity.

Typical applications

• Electronic Warfare

• ISR

• Radar Signal Processing

• Software Defined Radio

Looking for 3U OpenVPX FPGA Card aligned to the SOSA™ standard? Contact us for more information about our VP831

VP889 FPGA Board

Overview

RFSoC on 3U VPX: the VP430 direct RF system features an RFSoC with integrated ADCs, DACs, programmable FPGA logic, and Zynq ARM Cortex processor.

Specifications

Channels

8 Analog input, 8 Analog output

Conformal Coating

Option

Cooling

Air, Conduction

Data Rate

4000 Msps input, 6400 Msps output

Form Factor

VPX 3U

FPGA Family

Zynq Ultrascale+ RFSoC

Memory

8GB DDR4

Operating System (OS) Support

Linux, VxWorks, Windows

Resolution

12-bit in, 14-bit out

Abaco VP460 6U VPX Direct RF Processing System with Xilinx Zynq Ultrascale+ RFSoC

Overview

Next Generation FPGA, Aligned with SOSA Technical Standards

The VP460 is designed to enable customers to begin development of their next generation systems using revolutionary new processor technology. It is in alignment with the SOSA™ Technical Standard to provide the interoperability required by the US Air Force, Army and Navy.

Increased Performance in Less Space

The VP460 is a major step forward in performance and density, enabling the use of fewer boards with increased performance – thus minimizing SWaP – as well as the built-in ability to handle advanced MIMO, beamforming, and many applications such as communications, sensor processing, radar, and electronic warfare.

RFSoC and HBM, All in One

A 6U VPX RF processing system, the VP460 features the transformational Xilinx® Zynq® Ultrascale+™ RF system-on-chip (RFSoC) technology and the latest Xilinx Virtex™ Ultrascale+ High Bandwidth Memory (HBM) FPGA device. The RFSoC ZU29DR device used on the VP460 includes 16 integrated analog-to-digital converters at 2GSPS, 16 digital-to-analog converters at 6.4 GSPS, a user- programmable FPGA fabric, and multi-core Zynq ARM® processing subsystem.

The HBM VU37P device features the speed and capabilities of an UltraScale+ FPGA together with integrated DRAM in the FPGA package, capable of up to 460GB/s data transfer rates on-chip.

VP460

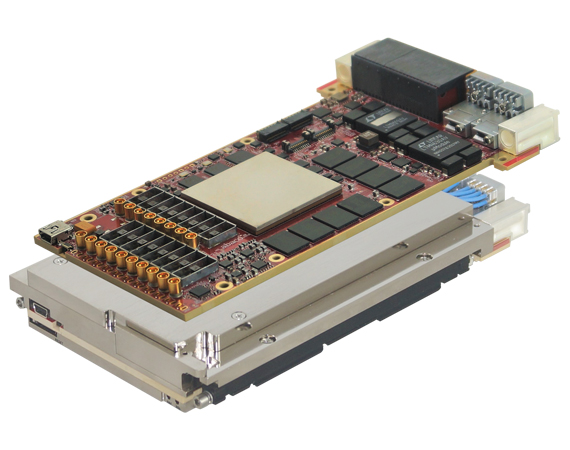

Abaco VP431 RFSoC Board

Overview

Next-Generation RF Processing System

VP431. the next generation of our highly successful VP430. is a 3U VPX commercial off-the-shelf direct RF processing system that features the 3rd-generation Xilinx Radio Frequency System-On-Chip (RFSoC). The VP431 maximizes I/O channel density, reduces the radio frequency signal chain complexity, and allows for heterogeneous processing capability.

Designed to Align with SOSA™ Technical Standard

The VP431 was designed to align with the Sensor Open Systems Architecture™ (SOSA) technical standard which enables the military to procure cost-effective tactical systems that can also be efficiently upgraded or repurposed.  Primes and integrators will see reduced platform time-to-market, resulting in faster revenue generation by having a menu of existing qualified solution sets that can be rapidly integrated.

Increased Performance in Less Space

The VP431 is a major step forward in performance and density, enabling the use of fewer boards with increased performance – thus minimizing SWaP – as well as the built-in ability to handle advanced MIMO, beamforming, and many military & aerospace, and commercial applications such as communications, sensor processing, radar, and electronic warfare.

3U VPX RF Processing System

The VP431 features the transformational 3rd generation Xilinx® Zynq® Ultrascale+™ RF system-on-chip (RFSoC). The ZU47DR device used on the VP431 includes eight integrated analog-to-digital converters sampling up to 5.0GSPS, eight digital-to-analog converters up to 10.0GSPS, a user-programmable FPGA fabric, and a multi-core Zynq ARM® processing subsystem.

Overview

New Technology with Open Architecture

The 6U VPX VP461 is designed with two Xilinx® Virtex® UltraScale+™ FPGAs and two Xilinx® Zynq® UltraScale+™ RFSoCs, allowing for closer proximity to the sensor for lower-latency and higher precision signal processing. A single slot populated with a VP461 can replace many different acquisition and processing boards that traditionally occupy multiple slots in a system. The RF and processing density of the VP461 enables new system architectures by offering one of the highest performance solutions in a SWaP-constrained environment.

Fast and Secure

An additional MPSoC manages the data traffic between the four primary FPGAs and the backplane while offering robust security. This allows the VP461 to be configured to each program’s unique RF and processing requirements. The rugged VP461 is designed to reliably operate in some of the harshest environments and applications, including radar, EW, DRFM, telecommunication base stations, semiconductor manufacturing equipment, autonomous vehicles, renewable energy stations, and more.

Flexibility with Open Standards

The SOSA-aligned backplane supports multiple 100GbE paths for high-speed data exchanges between other cards in the chassis, including multiple VP461s. Optional MORA, VITA 49.2. REDHAWK and GNU Radio support is available, providing and increased level of system flexibility and capability by taking advantage of future technology upgrades, portability, upgradeability and interoperability.

Overview

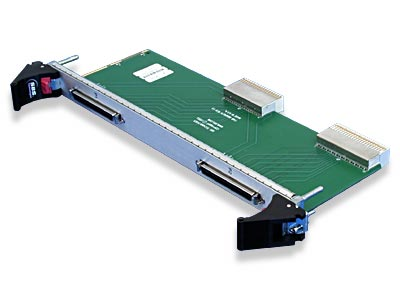

TM-683 is a transition module providing flexible access for the 128 lines of rear-panel I/O for our 6U CompactPCI carrier cards. Each of the two sets of 64 I/O lines is brought out to an individual high-density SCSI3-style 68-pin female connector allowing for individual connection to each module. This transition module contains no active components. It is compatible with CP-613. CP-620-5V, CP-630 and CP-640 carrier cards.

80 mm deep with rear panel and ejection hardware

Interfaces via P3 and P5 CompactPCI connectors

Rear-panel I/O support for SBS 6U CompactPCI carriers

Supports high-speed signal pairs

Specifications

Form Factor

cPCI 6U

TM-683

2 PMC rear panel I/O transition module for 6U CPCI
