The YASKAWA JANCD-CP50B is a high-performance Main CPU Board specifically designed for the YASNAC J50 series CNC (Computer Numerical Control) systems.

It serves as the “brain” of the control unit, executing complex motion control algorithms and managing data flow between the operator interface and the drive systems.

Introduction

The JANCD-CP50B is the central processing unit of the YASNAC J50L and J50M control racks.

In the hierarchy of CNC hardware, this board is responsible for interpreting G-code, calculating tool paths (interpolation), and supervising system-wide logic.

Because it is a legacy component, it is widely utilized today as a critical spare part for maintaining older high-precision machining centers.

Technical Parameter Table

Parameter	Specification
Model Number	JANCD-CP50B (Alternate ID: DF9202627-E0)
System Compatibility	YASNAC J50 Series (J50L, J50M)
Function	Main CPU / Logic Control Board
Processor Type	Proprietary Yaskawa Central Processor
Mounting	Backplane Plug-in (compatible with JANCD-BB50B)
Weight	Approx. 0.23 kg
Status Indicators	On-board Diagnostic LEDs (Run, Alarm, etc.)
Memory Support	Interfaces with JANCD-MM51-3 (Memory Extension)

Product Advantages and Features

Legacy Precision: Provides the high-speed block processing required for smooth surface finishes in milling and turning.

Integrated Diagnostics: Features a row of LED indicators that allow technicians to identify CPU or BUS errors without external tools.

Backward Compatibility: Specifically designed to replace older revisions (like the standard CP50) in existing J50 racks.

Robust Logic: Built to industrial standards to handle the heat and electrical interference found in heavy-duty machine shop environments.

Application Cases

Punch Presses: Managing the high-speed synchronization of turret movement and punching cycles.

Metal Lathes/Milling Machines: Serving as the core controller for brands like Matsuura or Kitamura that utilize YASNAC systems.

Retrofit Maintenance: Used by specialized repair facilities to restore functionality to CNC units where the original CPU has failed due to age or electrical surge.

High-Speed Tapping: Coordinating multi-axis movement for precision threading operations.

Related Models & Other Models in the Same Series

The JANCD-CP50B is rarely used alone; it is typically part of a specific board set within the J50 control rack:

JANCD-CP50B

Model	Function / Description
JANCD-CP50	Standard Main CPU (Earlier version of the CP50B)
JANCD-BB50B	Backplane / Motherboard for the J50 controller rack
JANCD-MM51-3	Memory Extension Board (Stores part programs and parameters)
JANCD-SR51	Single-axis Servo Interface Board
JANCD-IF50	Interface board for I/O and communication

The YASKAWA JAMSI-B1031 (often listed interchangeably with the part number JRMSI-B1031) is a PLC Mounting Base (Backplane/Chassis)

belonging to the Memocon-SC series of industrial controllers. It serves as the physical and electrical framework into which various CPU and I/O modules are installed.

Introduction

The JAMSI-B1031 is a 10-slot mounting base. Its primary role is to provide the internal communication bus and power distribution lines for the PLC modules.

It is a legacy product, widely found in older factory automation systems, particularly in heavy industries like steel, automotive, and chemicals.

Technical Parameter Table

Parameter	Specification
Model Number	JAMSI-B1031 / JRMSI-B1031
Part Type	PLC Mounting Base / Rack
Series	Memocon-SC (Legacy)
Number of Slots	10 Slots (Supports CPU + Power + I/O)
Compatibility	Memocon-SC GL Series (GL40S, GL60S, etc.)
Operating Voltage	Typically 220V AC (for power module input)
Mounting Type	Panel Mount (Inside control cabinet)
Weight	Approx. 2.7 kg (6.0 lbs)
Environmental	0°C to +55°C Operating Temperature

Product Advantages and Features

High Expandability: With 10 slots available, it allows for complex system configurations involving multiple digital, analog, and communication modules.

Rugged Construction: Built to withstand the harsh environments of 1980s and 90s industrial plants, featuring strong vibration resistance.

Stable Bus Communication: Ensures reliable high-speed data transfer between the CPU and remote I/O modules via a dedicated backplane bus.

Standardized Modular Design: Supports easy replacement of individual modules without disturbing the overall wiring of the rack.

JAMSI-B1031

Application Cases

Steel Industry: Used in legacy control systems for rolling mills and blast furnace monitoring.

Marine Automation: Found in older vessel engine room monitoring and cargo control systems.

Legacy Factory Upgrades: Often kept in service as a base for modernizing older machines where complete rewiring is cost-prohibitive.

Material Handling: Coordinating large-scale conveyor networks in older distribution centers.

Related Models & Other Models in the Same Series

The Memocon-SC series utilizes a variety of mounting bases and companion modules. Depending on the size of the control system, different base models are used:

Model	Function / Description
JAMSI-B1030	5-slot Mounting Base (Smaller configuration)
JAMSC-B1071	Digital Input Module (Compatible with B1031)
JAMSC-B1010	Basic I/O Module
PS-02	Power Supply Unit (Typically mounts on the left side of the base)
JACP-317	CPU Module for the Memocon-SC series

JAMSI-B1031

YASKAWA JAMSC-C8160 I/O DRIVER MODULE

Manufactured By: YASKAWA

Manufacturer Part Number: JAMSC-C8160

Description:

Yaskawa JAMSC-C8160 I/O Driver Module

The Yaskawa JAMSC-C8160 is an I/O driver module designed for industrial automation applications.

It supports various communication protocols and is part of the MEMOCON-SC series.

Specifications

Model: JAMSC-C8160

Type: I/O Driver Module

Series: MEMOCON-SC

Dimensions: 150mm x 100mm x 50mm

Weight: 0.8kg

Communication Protocols: PROFIBUS-DP, DeviceNet, Modbus RTU

Operating Voltage: 220V

Output Frequency: 50Hz

JAMSC-C8160

The YASKAWA JAMSC-C8160 is engineered for demanding industrial settings where reliability and accuracy are paramount.

This control module combines cutting-edge technology with robust design, ensuring seamless integration into existing systems.

Its advanced features include high-speed data processing and precise control capabilities, making it suitable for a wide range of applications including automation, robotics, and process control.

With its certified performance and durable construction, the JAMSC-C8160 is built to last and deliver consistent results.

Whether you’re upgrading an old system or building a new one, the YASKAWA JAMSC-C8160 provides the reliability and efficiency you need.

YASKAWA JAMSC-C8120 REMOTE I/O DRIVER MODULE

Manufactured By: YASKAWA

Manufacturer Part Number: JAMSC-C8120

Description:

Yaskawa JAMSC-C8120 Remote I/O Driver Module

The Yaskawa JAMSC-C8120 is a remote I/O driver module designed for industrial automation applications.

It features communication interfaces and error monitoring for industrial control systems.

Specifications

Type: JAMSC-C8120

Serial Number: RUD384

Communication Interface: MECHATROLINK-III

Control Axis: 8-axis synchronous

Voltage Range: 200-240V AC 10%

Dimensions: 100 100 50mm

Weight: 1.2kg

Protection Rating: IP65 (NEMA 4X)

The YASKAWA JAMSC-C8120 is meticulously engineered to deliver unparalleled precision and reliability in motion control applications. This module is an integral part of YASKAWA’s portfolio of advanced industrial automation solutions.

Designed with cutting-edge technology, the JAMSC-C8120 ensures consistent and accurate performance, making it ideal for applications requiring high-speed and high-precision operations.

Its robust design and superior quality materials ensure long-term durability and minimal maintenance.

This motion control module supports a wide range of servo systems and can be seamlessly integrated into existing manufacturing environments.

Its compact size and lightweight construction make installation and integration straightforward and efficient.

The JAMSC-C8120 is built to withstand harsh industrial conditions, featuring an IP65 rating that protects against dust ingress and water jets from any direction.

This makes it suitable for use in environments where exposure to dust, moisture, or extreme temperatures is common.

The YASKAWA   JAMSC-B1071 is a Register Output Module belonging to the legacy Memocon-SC series (specifically the 1000 series I/O) of Programmable Logic Controllers (PLCs).

It is designed to output multi-bit numerical data (registers) to peripheral devices like digital displays, timers, counters, or other intelligent controllers.

Introduction

The JAMSC-B1070 functions as a bridge for numerical data exchange between the PLC CPU and external hardware.

Unlike standard discrete output modules that handle simple on/off signals, the B1070 transmits complex values (such as BCD or binary codes)

sequentially using strobe signals to coordinate with external digital switches or displays.

Parameter	Specification
Model Number	JAMSC-B1071
Module Type	Register Output Module
Series	Memocon-SC (R84H, U84, U84S, 584)
Output Channels	8 Channels
Numerical Range	3-digit BCD / 10-bit Binary (R84H)4-digit BCD / 16-bit Binary (U84/584)
Logic Type	Active “LOW” (Open Collector)
Output Ratings	Max 30V DC, Max 50mA per point (Sink current)
External Power	24V DC $\pm$ 2V @ 0.2A
Strobe Cycle	64 ms (Sequential switching)
Status Indicators	BUS (CPU Comms), FIELD (Data transmission)
Weight	Approx. 0.7 kg to 1.0 kg

Product Advantages and Features

Efficient Slot Usage: Occupies only one slot on a 1000-series mounting base while handling up to 8 numerical output channels.

Sequential Data Transmission: Uses strobe (select) signals to output multiple data points over a shared set of wires, reducing cabling complexity.

High Compatibility: Fully integrated with the Memocon-SC architecture, appearing as standard output registers in the PLC’s I/O allocation table.

Industrial Hardening: Designed for high-reliability environments with built-in status LEDs for rapid field diagnostics.

JAMSC-B1071

Application Cases

Digital Displays: Driving large LED numerical panels on factory floors to show production counts, speeds, or error codes.

Timer/Counter Presets: Sending set-point values from the PLC to external hardware timers or specialized process controllers.

Machine Tool Interfacing: Transmitting tool offsets or coordinate data to older CNC units that accept BCD/binary inputs.

Legacy System Maintenance: Replacing failed units in established production lines where Memocon-SC PLCs are still operational.

Related Models & Other Models in the Same Series

The 1000-series I/O modules are modular components that can be mixed on the same mounting base:

JAMSC-B1071

Model	Function
JAMSC-B1071	Register Input Module (The input counterpart to the B1070)
JAMSC-B1073	A/D Conversion Module (Analog Input)
JAMSC-B1074	D/A Conversion Module (Analog Output)
JAMSC-B1050	I/O Buffer Module
JAMSC-B1010	Basic Discrete I/O Module

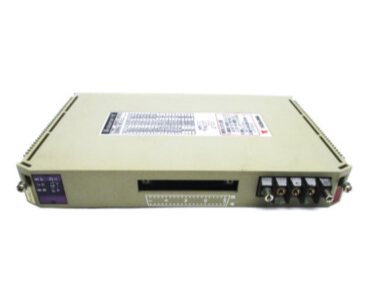

The YASKAWA JAMSC-B1070 is a Register Output Module belonging to the legacy Memocon-SC series (specifically the 1000 series I/O) of Programmable Logic Controllers (PLCs).

It is designed to output multi-bit numerical data (registers) to peripheral devices like digital displays, timers, counters, or other intelligent controllers.

Introduction

The JAMSC-B1070 functions as a bridge for numerical data exchange between the PLC CPU and external hardware.

Unlike standard discrete output modules that handle simple on/off signals, the B1070 transmits complex values (such as BCD or binary codes)

sequentially using strobe signals to coordinate with external digital switches or displays.

Parameter	Specification
Model Number	JAMSC-B1070
Module Type	Register Output Module
Series	Memocon-SC (R84H, U84, U84S, 584)
Output Channels	8 Channels
Numerical Range	3-digit BCD / 10-bit Binary (R84H)4-digit BCD / 16-bit Binary (U84/584)
Logic Type	Active “LOW” (Open Collector)
Output Ratings	Max 30V DC, Max 50mA per point (Sink current)
External Power	24V DC $\pm$ 2V @ 0.2A
Strobe Cycle	64 ms (Sequential switching)
Status Indicators	BUS (CPU Comms), FIELD (Data transmission)
Weight	Approx. 0.7 kg to 1.0 kg

Product Advantages and Features

Efficient Slot Usage: Occupies only one slot on a 1000-series mounting base while handling up to 8 numerical output channels.

Sequential Data Transmission: Uses strobe (select) signals to output multiple data points over a shared set of wires, reducing cabling complexity.

High Compatibility: Fully integrated with the Memocon-SC architecture, appearing as standard output registers in the PLC’s I/O allocation table.

Industrial Hardening: Designed for high-reliability environments with built-in status LEDs for rapid field diagnostics.

Application Cases

Digital Displays: Driving large LED numerical panels on factory floors to show production counts, speeds, or error codes.

Timer/Counter Presets: Sending set-point values from the PLC to external hardware timers or specialized process controllers.

Machine Tool Interfacing: Transmitting tool offsets or coordinate data to older CNC units that accept BCD/binary inputs.

Legacy System Maintenance: Replacing failed units in established production lines where Memocon-SC PLCs are still operational.

Related Models & Other Models in the Same Series

The 1000-series I/O modules are modular components that can be mixed on the same mounting base:

Model	Function
JAMSC-B1071	Register Input Module (The input counterpart to the B1070)
JAMSC-B1073	A/D Conversion Module (Analog Input)
JAMSC-B1074	D/A Conversion Module (Analog Output)
JAMSC-B1050	I/O Buffer Module
JAMSC-B1010	Basic Discrete I/O Module

The YASKAWA DI-01 (often part of a combined set like the CP-317/DI-01) is a high-density Digital Input Module primarily designed for the MP900 and MP2000 series machine controllers.

It serves as the primary interface for receiving binary signals (on/off) from field devices such as pushbuttons, limit switches, and proximity sensors.

Introduction

The DI-01 module is an expansion card that plugs into the controller’s backplane.

It is designed to handle a large number of inputs in a compact form factor, providing the high-speed scanning capabilities required for complex motion control sequences.

It is commonly paired with the CP-317 CPU module in older Yaskawa PLC/Motion architectures.

Technical Parameter Table

DI-01

Parameter	Specification
Model Number	DI-01 (often identified as JAPMC-ID2300)
Compatible Series	MP920, MP930, MP2300, MP2310
Input Points	32 Points (High Density)
Input Voltage	24V DC (+10% / -15%)
Input Current	Approx. 5mA per point
Isolation	Photocoupler Isolation
Response Time	ON $\rightarrow$ OFF: 0.5 ms / OFF $\rightarrow$ ON: 0.5 ms
Connection Type	50-pin high-density connector (half-pitch)
Operating Temp	0°C to +55°C
Weight	Approx. 0.25 kg

Product Advantages and Features

High-Speed Processing: Features very low response latency ($0.5\text{ ms}$), making it suitable for high-speed indexing and registration mark detection.

Large Capacity: 32 inputs per module allow for extensive automation control without requiring multiple smaller I/O cards.

Compact Design: Uses high-density connectors to minimize the physical footprint of the controller rack.

DI-01

Status Visualization: Usually equipped with LED indicators for each input channel, allowing maintenance teams to verify signal status at a glance.

Reliable Isolation: Photocoupler isolation ensures that electrical noise from the factory floor does not damage the sensitive CPU logic.

Application Cases

Material Handling: Detecting the presence of parts on a conveyor belt via proximity sensors.

Machine Safety: Interfacing with emergency stop buttons and safety door interlocks.

Automated Packaging: Receiving trigger signals from sensors for high-speed bag cutting and sealing.

Semiconductor Tools: Coordinating digital “handshake” signals between different process chambers.

Other Models in the Same Series

The MP2000/MP900 I/O series offers various configurations to match different voltage and signal requirements:

Model	Type	Function
DO-01	Digital Output	32 or 64-point transistor outputs.
LIO-01	Mixed I/O	Combination of digital inputs and outputs on one card.
AI-01	Analog Input	8-channel high-precision analog data acquisition.
AO-01	Analog Output	4-channel analog signal generation.
CN5-A / CN5-B	Connectors	Standardized 50-pin cable connectors for the DI-01.

The YASKAWA CPS-18F8 (often part of the CPS-18F series) is a robust Power Supply Unit (PSU) specifically designed for YASNAC CNC systems and early Motoman robot controllers.

It is a mission-critical component that converts AC input into the stabilized DC voltages required to power the controller’s logic boards, CPU, and interface cards.

Introduction

The CPS-18F8 is a backplane-mounted power supply.

It is widely recognized for its high stability and is a staple in legacy industrial machine tools (like Matsuura or Mori Seiki) that utilize YASNAC control systems.

It typically features multiple DC outputs to support different electronic logic levels within the same rack.

Technical Parameter Table

Parameter	Specification
Manufacturer	Yaskawa Electric Corporation
Model Number	CPS-18F8 (Series: CPS-18F)
Input Voltage	200V – 230V AC (Single Phase)
Input Frequency	50/60 Hz
Output 1 (Logic)	+5V DC @ 15A
Output 2 (I/O/Relay)	+24V DC @ 4.5A
Cooling Method	Natural convection or internal fan (depending on housing)
Connection Type	Multi-pin blade connectors / Screw terminals
Weight	Approx. 2.0 kg
Mounting	Standard Yaskawa Rack / Backplane mount

Product Advantages and Features

Multi-Rail Output: Provides both +5V for digital logic and +24V for peripheral I/O, eliminating the need for separate power modules.

Industrial Durability: Engineered for 24/7 operation in harsh factory environments with high resistance to heat and electrical noise.

Overload Protection: Built-in circuitry to prevent damage to expensive CPU and memory boards in the event of a short circuit.

Maintenance Friendly: Features standard connectors that allow for rapid “hot-swap” replacement, significantly reducing machine downtime.

CPS-18F8

Application Cases

YASNAC J50/MX3 CNCs: Acting as the primary power source for the main processing unit and operator panel.

Vertical Machining Centers: Powering the control electronics in machines from brands like Matsuura and Kitamura.

Legacy Motoman Robots: Used in the power distribution racks of ERC and MRC series robot controllers.

Retrofit Projects: Frequently used by engineers to maintain or restore older CNC equipment where original parts are discontinued.

Other Models in the Same Series

The CPS series includes various power ratings and output configurations tailored for different controller sizes:

CPS-18F8

Model	Application/Notes
CPS-18FB	Similar to 18F8, common in newer YASNAC revisions.
CPS-150F	Higher power capacity for larger control racks.
CPS-420F	Specialized for the Motoman NX100 controller series.
CPS-520F	High-output unit for DX series robot controllers.
CPS-10F	Compact version for smaller, single-axis control units.

The YASKAWA AI-01 (often identified by the part number JEPMC-AN200) is a high-performance Analog Input Module designed for the MP900 and MP2000 series machine controllers.

It is a critical component for systems requiring high-speed, high-precision data acquisition from external sensors to the controller.

AI-01

Introduction

The AI-01 serves as an expansion interface that converts continuous analog signals (such as voltage or current) from sensors into digital data that the Yaskawa Machine Controller can process.

It is commonly used for monitoring physical variables like pressure, temperature, or tension in real-time motion control applications.

Technical Parameter Table

Parameter	Specification
Model Number	AI-01 (JEPMC-AN200)
Series	MP2000 / MP900 Machine Controllers
Input Channels	8 Channels
Input Range (Voltage)	-10V to +10V
Input Range (Current)	0mA to 20mA (or 4mA to 20mA)
Resolution	16-bit (High Precision)
Conversion Speed	Approx. 1 ms per all 8 channels
Isolation Method	Photocoupler isolation between circuits
Current Consumption	Approx. 500mA (+5V DC)
Weight	~0.3 kg

Product Advantages and Features

High Channel Density: Supports up to 8 channels in a single compact module, saving rack space.

Superior Accuracy: 16-bit resolution ensures minimal signal loss, which is essential for delicate operations like tension control or high-precision polishing.

Flexible Scaling: Users can configure each channel independently for either voltage or current inputs via software or jumper settings.

Robust Isolation: Protects the main controller’s CPU from electrical surges or noise originating from field sensors.

Plug-and-Play Integration: Fully integrated into the MotionWorks IEC or MPE720 software environments for easy configuration.

AI-01

Application Cases

Tension Control: Monitoring load cells in printing or textile machines to maintain constant material tension.

Hydraulic Systems: Interfacing with pressure transducers to control hydraulic cylinder force.

Quality Inspection: Real-time monitoring of torque values or displacement during assembly to detect defects.

Environmental Monitoring: Reading temperature or humidity sensors in clean-room automation setups.

Other Models in the Same Series

The MP2000/MP900 option card series includes several complementary modules for varied industrial needs:

Model	Type	Function
AO-01 (JEPMC-AN2310)	Analog Output	Provides 4 analog output channels.
DO-01 (JAPMC-DO2300)	Digital Output	64-point transistor output module.
LIO-01 (JAPMC-IO2300)	Digital I/O	Mixed digital input and output module.
PO-01 (JEPMC-PL2900)	Pulse Output	High-speed pulse generation for step/dir drives.
260IF (JAPMC-CM2300)	Communication	DeviceNet or Profibus interface card.

Yaskawa SGMAH-02AAA21 Product information and technical parameters

Brand: Yaskawa

Name: servo motor

Model: SGMAH-02AAA21

Servo motor type SGMAH (speed: 3000r\/min).

Power: 0.2kw.

Power supply voltage: single phase AC200V.

Serial encoder: 13 bit relative value.

Design sequence: A.

Shaft end: straight shaft without key.

Optional parts: no brake oil seal.

Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,

Compared with the original models, CPU computing time for its 1\/2. through the expansion of the new control algorithm,

Positioning time is shortened to the original product of 1\/3. to achieve a good response.

The parameter setting and maintenance time is shortened.

In order to establish a high degree system in a short time, the use of the simplicity of the.

Flexible use of online automatic adjustment function,

Automatic adjustment of servo system with mechanical characteristics.

Then use the main loop \/ control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance

Servo motor SGMGH type.

Rated speed: 1500r\/min.

Power: 7.5Kw.

Power supply voltage: three phase AC200V.

Serial encoder: 17 bit relative value.

Design sequence: high precision machine tool.

Shaft end: straight shaft with screw key.

Optional parts: with oil seal, DC24V brake.

High speed feed series: high speed running when no load Yaskawa SGMAH-02AAA21.

Complete separation of the main circuit and the control circuit,

Alarm can only turn off the main circuit power supply, easy to maintain SGMAH-02AAA21

SGMAH-02AAA21

Parameter setting device.

The parameters can be directly entered by the servo drive body.

Saving wiring.

Using a serial encoder, encoder wiring number than the original product reduced by 1\/2.

Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlServo motor type SGMPH (speed: 3000r/min) Yaskawa SGMAH-02AAA21.

Power: 0.75kw.

SGMAH-02AAA21

Power supply voltage: three phase AC200V.

Serial encoder: 13 bit relative value.

Design sequence: A.

Shaft end: straight shaft with key.

Optional parts: with DC24V brake.

Partial flat series: the need to install the servo motor in a small space.

Flexible user system Yaskawa SGMAH-02AAA21.

For you to build the best system to enrich the product line to support you.

Products with single phase 200V, single phase 100V, three-phase 200V,

And for the absolute value encoder, a variety of motor with brake, belt speed reducer.

And then, because of its compliance with international standards, in the world can be assured that the use of.

Smooth running, there is a very seasonal rate of observation and control,

The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated.Equipped with DeviceNet communication function type servo unit (servo controlled power supply drive type)

Maximum applicable motor capacity: 1.5kw.

Power supply voltage: three phase AC400V.

Interface: instruction selection and installation (linear servo motor).

Matching (hardware): paint.

Matching (software): standard.

Matching (parameter): standard.

Optional modules: DeviceNet module (servo control power supply driver).

Communication specifications for DeviceNet based on open field network.

The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.

Can make use of the city”s rich DeviceNet support software.

Can use the upper controller to manage the servo information.

Through the network from the host controller to monitor the running status of the servo drive, alarm information.

Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).

Save wiring, reduce the cost and improve the reliability.

Because the upper controller and the servo unit arre connected through the communication network, the connection is greatly saved SGMAH-02AAA21.

Built in rich positioning function.

Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.

Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function SGMAH-02AAA21.

Yaskawa SGMAH-02AAA21 Product information and technical parameters

Brand: Yaskawa

Name: servo motor

Model: SGMAH-02AAA21

Servo motor type SGMAH (speed: 3000r\/min).

Power: 0.2kw.

Power supply voltage: single phase AC200V.

Serial encoder: 13 bit relative value.

Design sequence: A.

Shaft end: straight shaft without key.

Optional parts: no brake oil seal.

Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,

Compared with the original models, CPU computing time for its 1\/2. through the expansion of the new control algorithm,

Positioning time is shortened to the original product of 1\/3. to achieve a good response.

The parameter setting and maintenance time is shortened.

In order to establish a high degree system in a short time, the use of the simplicity of the.

Flexible use of online automatic adjustment function,

Automatic adjustment of servo system with mechanical characteristics.

Then use the main loop \/ control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance

Servo motor SGMGH type.

Rated speed: 1500r\/min.

Power: 7.5Kw.

Power supply voltage: three phase AC200V.

Serial encoder: 17 bit relative value.

Design sequence: high precision machine tool.

Shaft end: straight shaft with screw key.

Optional parts: with oil seal, DC24V brake.

High speed feed series: high speed running when no load Yaskawa SGMAH-02AAA21.

Complete separation of the main circuit and the control circuit,

Alarm can only turn off the main circuit power supply, easy to maintain SGMAH-02AAA21

SGMAH-02AAA21

Parameter setting device.

The parameters can be directly entered by the servo drive body.

Saving wiring.

Using a serial encoder, encoder wiring number than the original product reduced by 1\/2.

Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlServo motor type SGMPH (speed: 3000r/min) Yaskawa SGMAH-02AAA21.

Power: 0.75kw.

SGMAH-02AAA21

Power supply voltage: three phase AC200V.

Serial encoder: 13 bit relative value.

Design sequence: A.

Shaft end: straight shaft with key.

Optional parts: with DC24V brake.

Partial flat series: the need to install the servo motor in a small space.

Flexible user system Yaskawa SGMAH-02AAA21.

For you to build the best system to enrich the product line to support you.

Products with single phase 200V, single phase 100V, three-phase 200V,

And for the absolute value encoder, a variety of motor with brake, belt speed reducer.

And then, because of its compliance with international standards, in the world can be assured that the use of.

Smooth running, there is a very seasonal rate of observation and control,

The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operated.Equipped with DeviceNet communication function type servo unit (servo controlled power supply drive type)

Maximum applicable motor capacity: 1.5kw.

Power supply voltage: three phase AC400V.

Interface: instruction selection and installation (linear servo motor).

Matching (hardware): paint.

Matching (software): standard.

Matching (parameter): standard.

Optional modules: DeviceNet module (servo control power supply driver).

Communication specifications for DeviceNet based on open field network.

The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.

Can make use of the city”s rich DeviceNet support software.

Can use the upper controller to manage the servo information.

Through the network from the host controller to monitor the running status of the servo drive, alarm information.

Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).

Save wiring, reduce the cost and improve the reliability.

Because the upper controller and the servo unit arre connected through the communication network, the connection is greatly saved SGMAH-02AAA21.

Built in rich positioning function.

Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.

Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function SGMAH-02AAA21.
